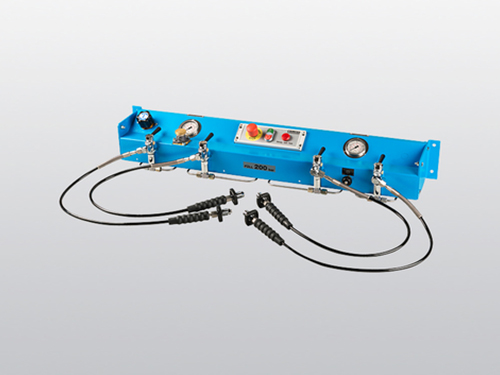

External BAUER filling control board
operation panel
The full filling station is used to fill the air air cylinder quickly and economically. The main components of the filling station include the compressor equipment, the storage system, the automatic connecting device, the conversion cock and the filling control board.
The external BAUER fill control panel is designed as a separate filling control panel installed on the side wall, equipped with remote controller, which is perfectly suitable for installation in other spaces.
The filled appendage is made from a specially pressed brass, so it has a strong resistance to different climate conditions around the world.
The filled hose meets the high standard safety requirements for filling the breathing air bottle. It is rotationally placed at the end of the hose.
They ensure that the operator of the filling station can be operated at any time in the best and safe way, so that the breathing air bottle can be easily filled.
The rocker filling valve is equipped with a muffler. It is used to effectively sound insulation during filling.
The check valve in the filling valve ensures that the safety of personnel and operation can be provided even when the filling valve is accidentally opened.

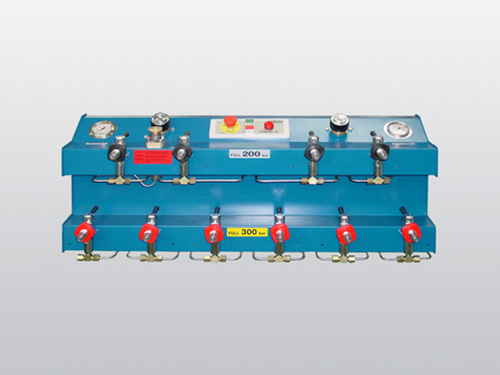

The number of fill valves on the filling control panel is 4, 6, or 10.
The amount of power supplied by the air supply compressor should be provided.
The air supply power determines the filling time of the air air cylinder. Protect each pressure zone through the safety valve.
The filling control board with the pressure reducer can fill the air cylinder with different pressures at the same time. On the other hand, only one pressure zone for filling cylinders is available for filling control panels with conversion cocks.
The external BAUER filling control board as an optional attachment can be used for all BAUER breathing air compressor equipment. A filling control board with special specifications can be available.
In the external BAUER filling control board, the remote operation panel for remote connection and disconnection and the monitoring of compressor equipment can also be integrated, such as:
Display the technical fault and automatically turn off the fault warning lamp of the compressor equipment.
Running signal of current compressor running state
Show the saturation of the filter core and the warning lamp that is necessary to replace the filter core (used only for the compressor equipped with the filter monitor B-SECURUS).
